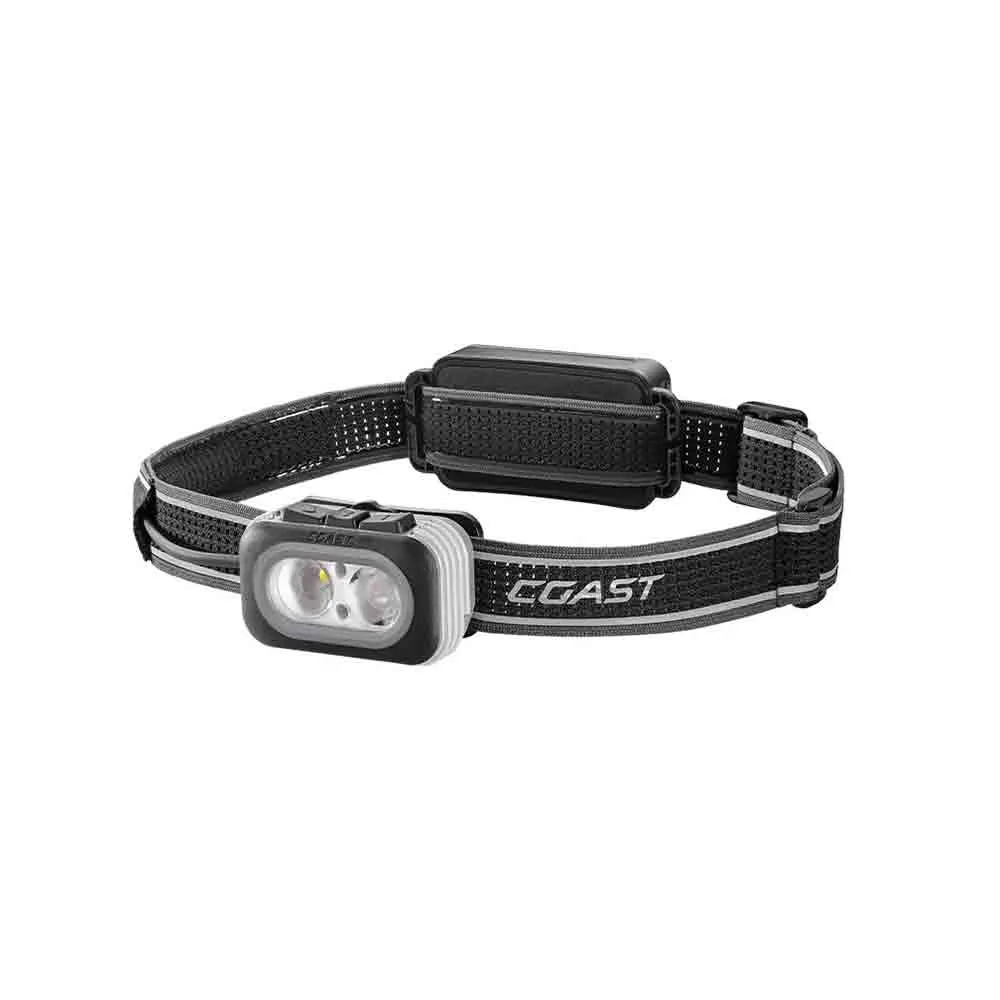

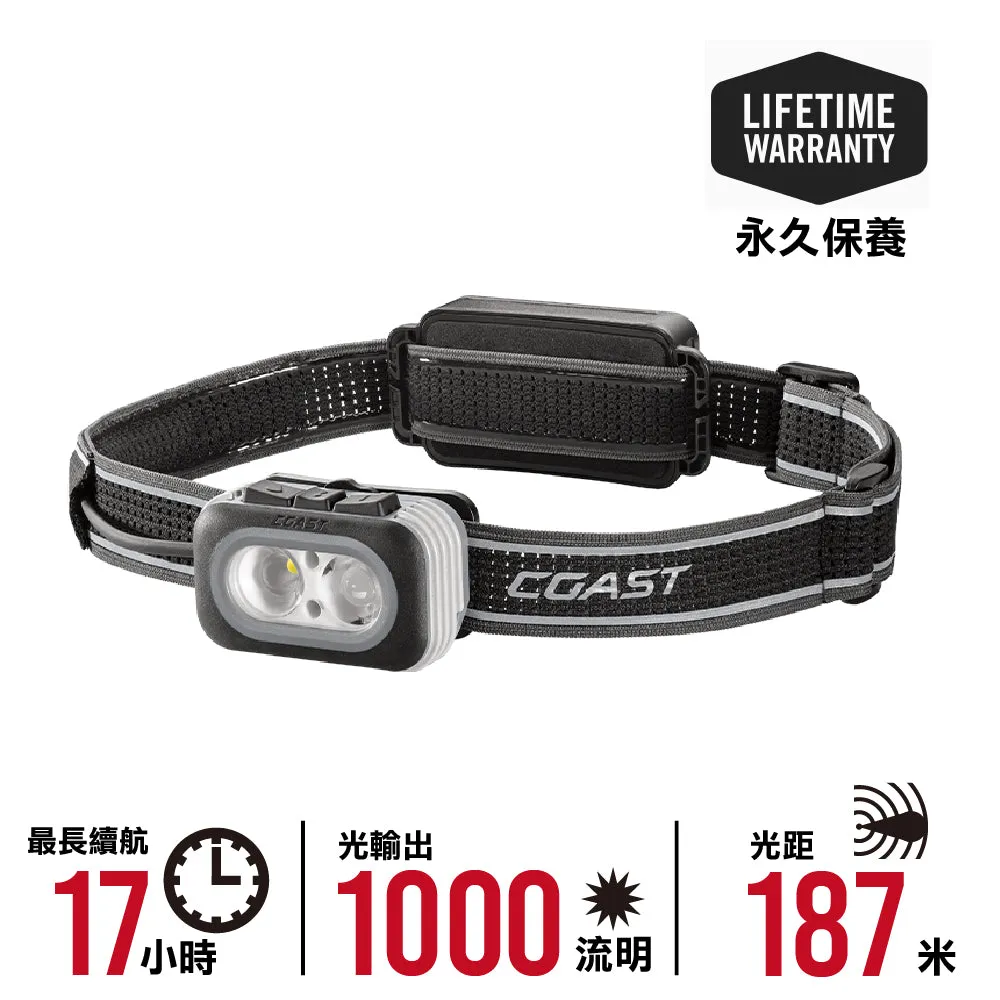

RL20R Ultra View BULLS-EYE 1000 LED COAST ZITHION Rechargeable Plus USB-C RL20R IP54

1000 LUMENS 187M BEAM 17H

Feature
BATTERY CHARGES INSIDE LIGHT
COAST ZITHION non-ported rechargeable batteries are built to charge from within your COAST light using a COAST charging system.

BATTERY CHARGING LEVEL INDICATOR
Check the status of your batteries charge level with our built-in charge level indicator. (Solid red) when charging, (solid green) when fully charged.

BATTERY LIFE INDICATOR
Know when to power back upwith a battery-life indicator, you can always know when your battery needs to be recharged.

BUILT-IN USB-C PORT
With a built-in USB-C port, your battery can be charged using a USB-C cord. Some COAST models can be charged both inside or outside the light.

HARDHAT COMPATIBLE
Rugged enough for the outside of the hardhat. COAST headlamps with Hardhat Compatible design include clips for attaching the light to the hat.

HINGED BEAM
Up, down, or straight ahead. All COAST headlamps feature a hinged, tilting head so that you can adjust the lights direction and see right where youre looking.

LIGHT CONTROL WHEEL
Dial in your light output. COASTs patent-pending variable light-control system puts you in control of your headlamps beam intensity, with a rotating sensor knob that detects a magnetic field inside the headlamp bezel.

RECHARGEABLE BATTERY
Power up on your terms with a recharging system that connects to standard outlets and ports.

STORM PROOF
Dont worry about the weather. COAST lights that have passed the IP54-level resistance tests are splash-resistant and built with durable materials that stand up to nature.

STORMPROOF
Ride out storms with lightyour crushproof, weatherproof area light shines bright or sends a signal when the wind and rain cause outages.

TRI-COLOR BEAM
Versatility to meet broad needs. The Tri-Color Beam combines white, red, and green beams into a single device. High-powered LEDs deliver all-white light for general use, red light for anti-glare and signaling, and green light for tracking.

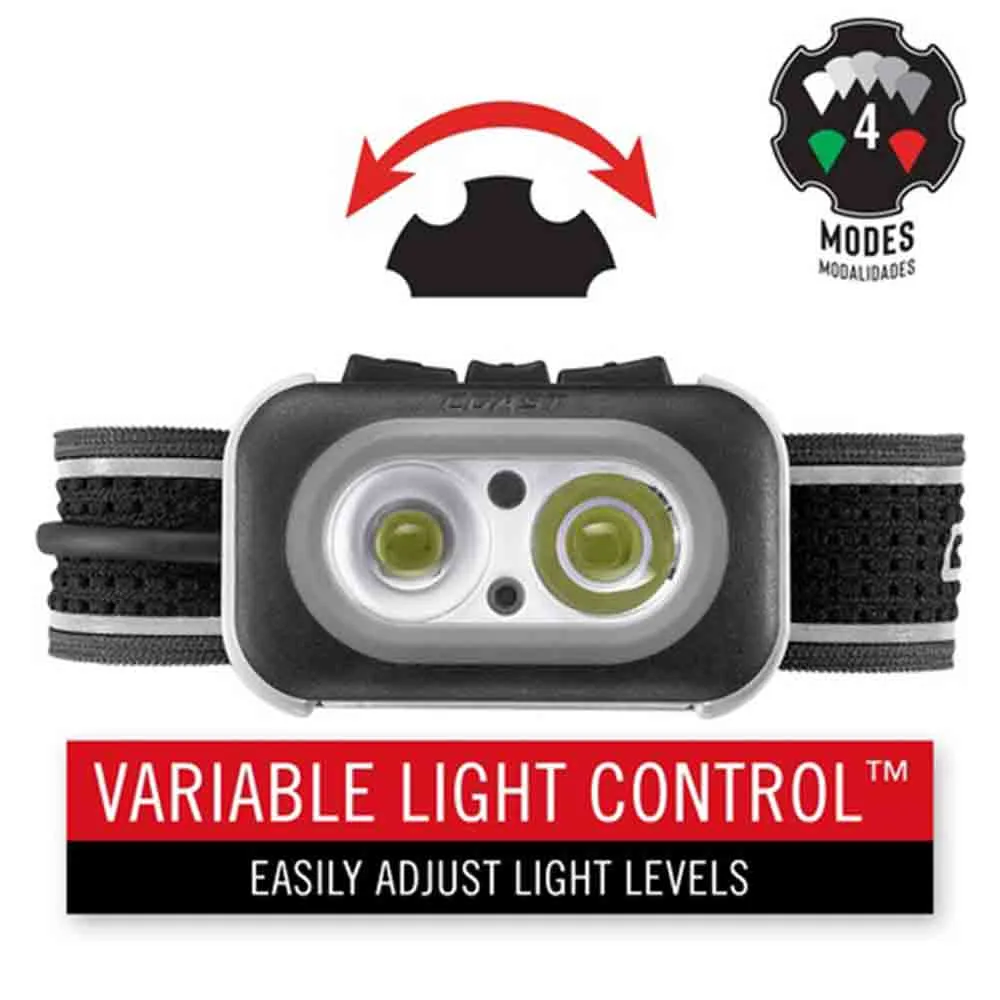

VARIABLE LIGHT CONTROL TECHNOLOGY
Easily adjust headlamp light output. COAST Variable Light Control Technology provides three ways to precisely regulate beam intensity.

Specification
BEAM DISTANCE (COMBINED HI)
587 ft / 179 m

BEAM DISTANCE (COMBINED LOW)
160 ft / 49 m

BEAM DISTANCE (FLOOD HIGH)
239 ft / 73 m

BEAM DISTANCE (FLOOD LOW)
55 ft / 17 m

BEAM DISTANCE (SPOT HIGH)
613 ft / 187 m

BEAM DISTANCE (SPOT LOW)
150 ft / 46 m

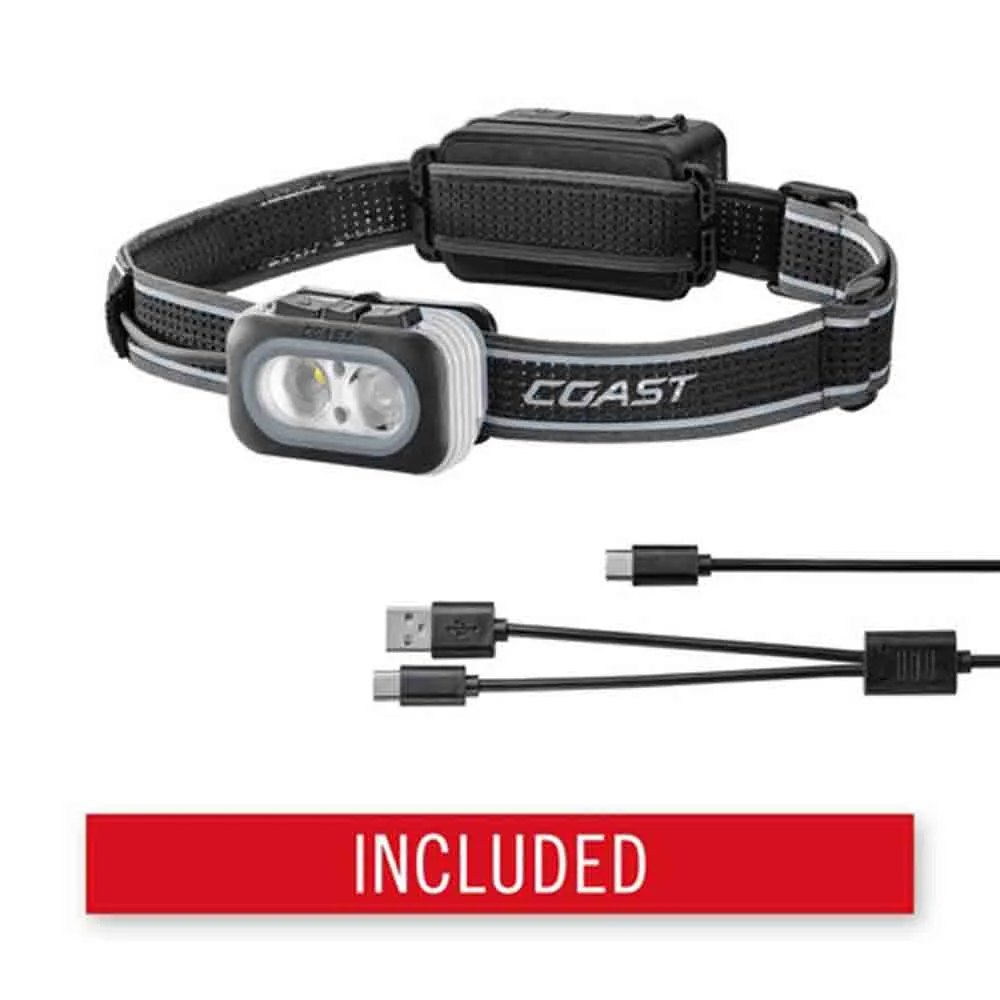

INCLUDED
One Meter USB-C Charging Cable

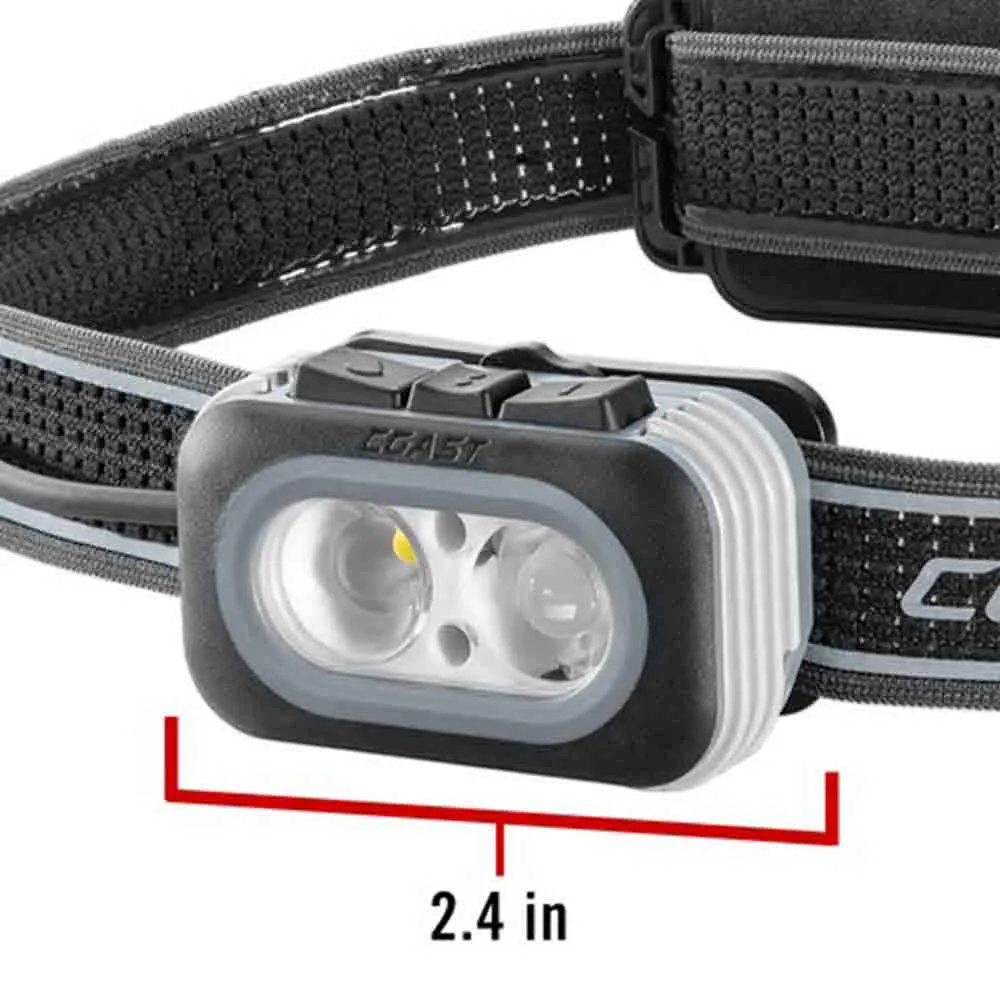

LENGTH / WIDTH / HEIGHT
2.33 in / 1.91 in / 1.2 in

LIGHT OUTPUT (COMBINED HIGH)
1000 Lumens

LIGHT OUTPUT (COMBINED LOW)
84 Lumens

LIGHT OUTPUT (FLOOD HIGH)
620 Lumens

LIGHT OUTPUT (FLOOD LOW)
40 Lumens

LIGHT OUTPUT (SPOT HIGH)
690 Lumens

LIGHT OUTPUT (SPOT LOW)
45 Lumens

RUNTIME (COMBINED HIGH)
2 h

RUNTIME (COMBINED LOW)
9 h 15 min

RUNTIME (FLOOD HIGH)
4 h 30 min

RUNTIME (FLOOD LOW)
17 h

RUNTIME (SPOT HIGH)
4 h 15 min

RUNTIME (SPOT LOW)
16 h

WEIGHT (INCL BATT)
4.7 oz. / 132 g

Warranty
5 years Warranty
Warranty services shall be subject to the detailed terms and conditions. Please check with us by WhatsApp at (852) 6360-2944 for more details

Details

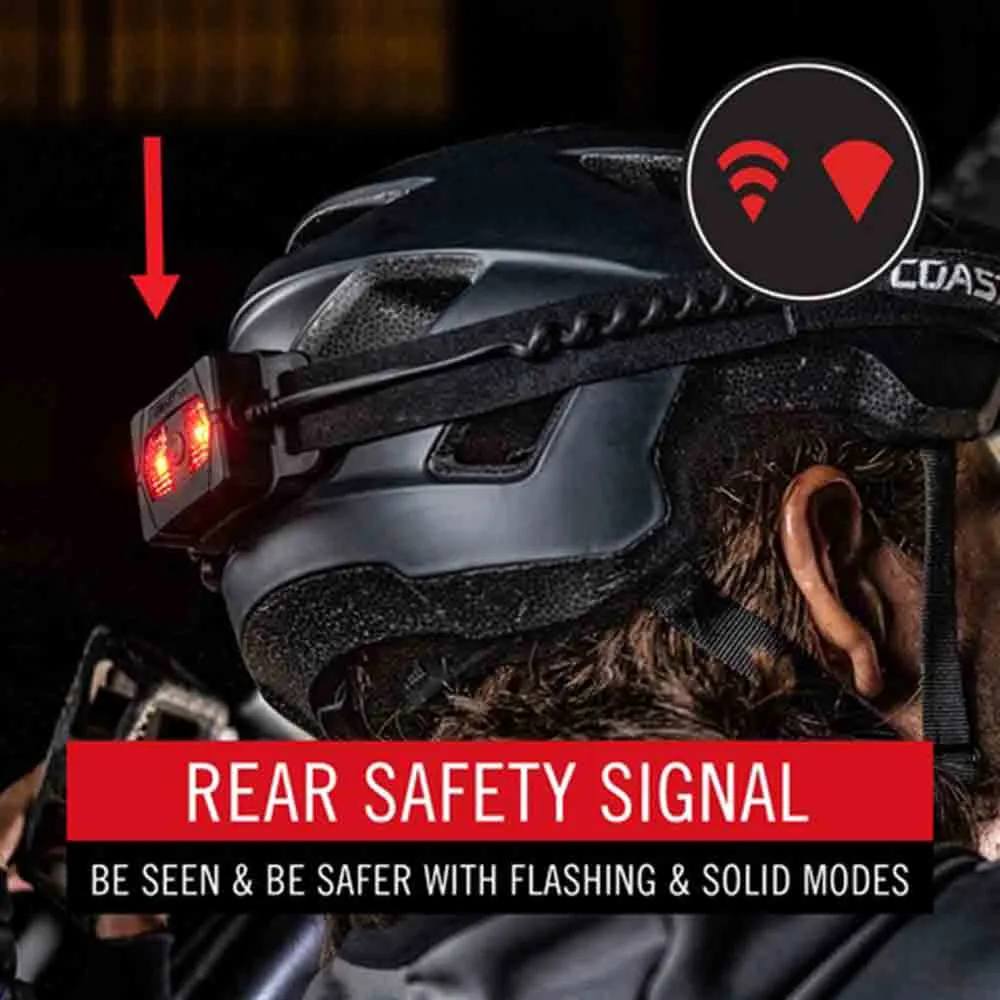

Dial your light to get it just right. The RL20R rechargeable headlamp features Variable Light Control technology that allows you to brighten or dim the light to match the situation perfectly. Two independently controlled beamsan Ultra View Flood Beam and BULLS-EYE Spot Beamcombine to shine 1000 lumens when the dial is all the way up. Intuitive, independent controls on top of the light body add red and green LED options to your lighting possibilities. At the back of the head strap, the integrated COAST ZITHION rechargeable battery pack features a rear-facing safety signal that shines in solid red or flashing red with its own on/off switch. The headlamps Rechargeable Plus power system can receive a booster battery pack (sold separately) that snaps into position on top of the integrated batteryallowing twice the run time for long shifts or convenience in off-grid locations. Monitor the battery life indicator to know when you to need to plug in and recharge via USB-C. Constructed of top-grade materials, the RL20R is IP54 water-resistant and dust-resistant
