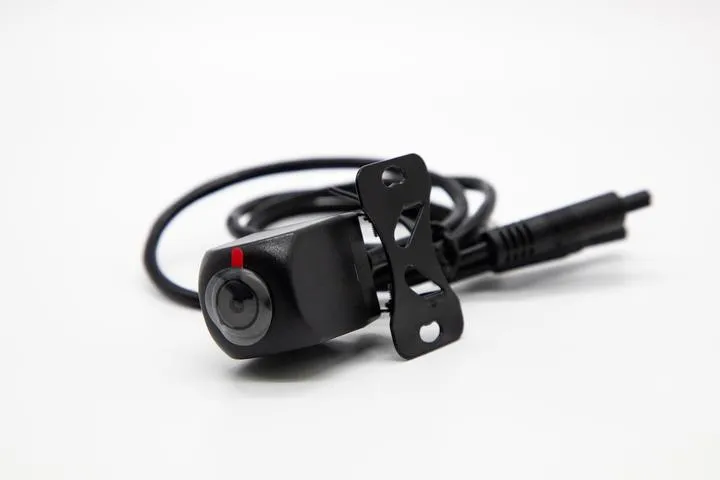

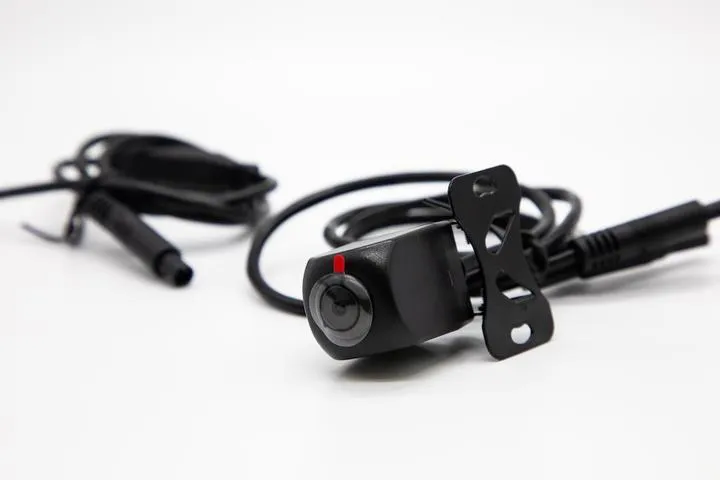

Hema's Wi-Fi reversing camera used in conjunction with the Hema HX-2 Navigatoroffers enhanced rearward visibility for drivers and, thus, help minimise the risk of "blind zone" accidents whenever your vehicle is moving in reverse.
Thiswireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle.
Suitable for both 12v and 24v vehicles (camera and transmitter are compatible from 9 to 28 Volts).
The camera is IP69Kratedproviding protection against ingress of dust and high temperature, high pressure water.
KeyFeatures
- COMPATIBILITY - Works seamlessly withHema HX-2 Navigator
- WIDE FIELD OF VIEW - 140-degree wide-angle field of view; shows whats behind your vehicle when in reverse
- BUILT-IN WI-FI - Built-in Wi-Fi connectivity transmits live camera view fromthe reversing camera directly to yourHX-2 navigators display
- WIRELESS RANGE - Transmits camera footage up to30M away (range varies based on installation)
KeySpecifications
| Receive | WIFI | Android OS | |
| Function | Power ON | 1.0 S | |
| Latency | 120ms | ||
| Resolution | VGA | ||
| Frame Rate | 30f/s | ||
| Video Codec | MPEG4 | ||
| Video in System | PAL | ||
| Video Characteristics | Video Output impedance | 75, Typ | |
| Video Output Level | 1.2 Vp-p, Typ. | ||
| S/N | 50dB, Min | ||
| RF Specification | Operation Frequency | 2412 ~ 2483.5MHz (WIFI 802.11 g/n) | |
| RF Impedance | 50, Typ. | ||
| Receiving Sensitivity | -89dBm | ||
| Output Power | 12dBm | ||
| RF Bit Rate | 11Mbps | ||
| Modulation | QPSK,16QAM | ||
| Channel | CH1 to CH 13 | ||
| DC | Power Supply | DC 9-16V/200mA | |
| Environmental Specification | Operating Temperature | -20C~70C | |
| Storing Temperature | -30C~85C | ||
| Operating humidity | Humidity 90% | ||
| Waterproof rating | IP69K | ||
| Light rating | 0.2 Lux | ||
| Others | Unit Dimension(mm) | 45 x 48 x 15.6mm | |
| Unit Weight | Item weight: 50.0g | ||

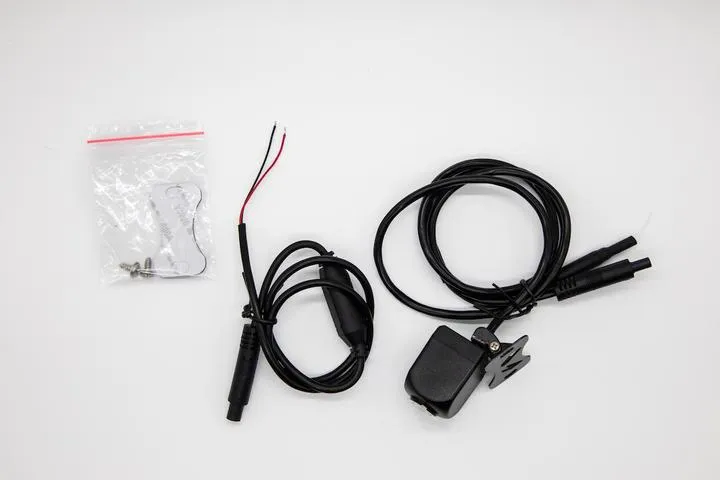

Package includes:
- HX-2Reversing Camera
PackagingSpecifications
ReleaseDate:01/11/21
Boxsize (WxH):130mm x 55mm
Box Weight: 0.83kg
Suits: Hema HX-2 Navigator
Control: Via HX-2 Camera App
Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Following install, the camera operates via Wi-Fi. Wi-fi signal performance can be impacted by obstructions. This device is designed specifically for vehicle use and performance with camper trailers/caravans may vary.
